RF Signal Generators

DSG3000 Series

High Performance RF signal generation and modulation 3 and 6 GHz models with optional built-in IQ baseband generator and OCXO timebase

Data Sheet

Trial-Request

Product Information
Contact Us
Starting Price
-

9kHz~12GHz

Frequency Range

-130dBm~+13dBm

AMPLITUDE INDICATORS RANGE

<-110dBc/Hz@1GHz,20kHz offset

Phase Noise
FEATURES
MODEL
SOFTWARE & FIRMWARE
UPGRADE & ACCESSORIES
MANUAL
FEATURES

Signal Output Function

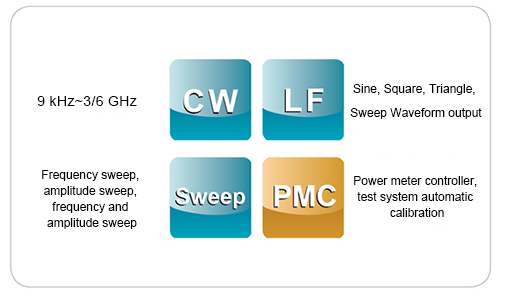

DSG3000 output signal frequency up to 12GHz, can produce continuous wave, various forms of low frequency signals and a variety of parameters can be set frequency / amplitude scanning signal, the output signal is accurate and reliable, and provides automatic calibration through the power meter

High Power Signal Generation Capability

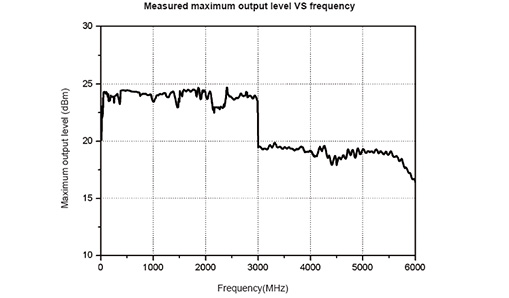

The maximum output amplitude is +13dBm (nominal value), which can be set to +25dBm, which meets the non-linearity test of the amplifier.

Pulse Modulation, Providing Up to 80dB Switching Ratio

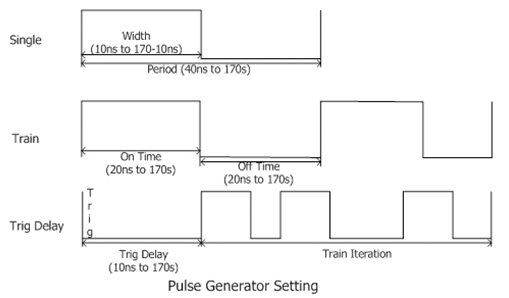

Standard pulse modulation, pulse on/off ratio up to 80dB, optional custom pulse sequence, can generate single pulse, double pulse and arbitrary pulse sequence, with analog modulation external modulation input function, can easily realize ASK, FSK, Simple digitally modulated output such as PSK

Internal and External IQ Modulation

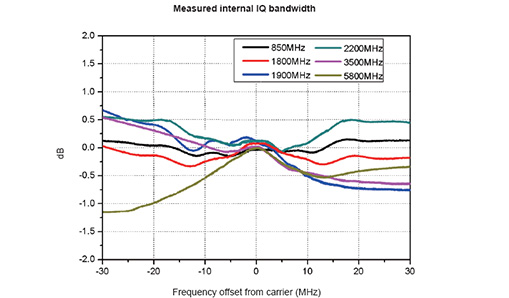

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM <0.7%, external I+Q modulation bandwidth 240MHz, EVM <0.8% (typical), and Ultra IQ Station for convenience Generated vector signal waveform

Reliable Output Amplitude Stability

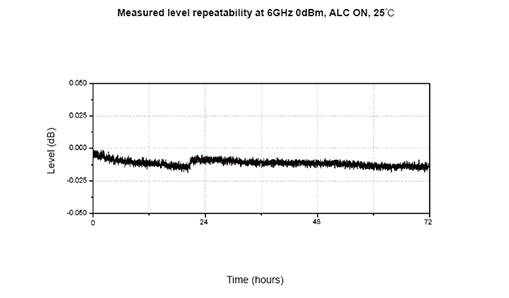

Excellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB

Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources

Phase Noise Metric

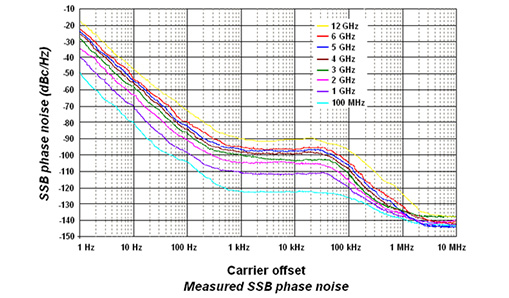

High signal purity, phase noise typical value <-110dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index

Small Signal Output Capability

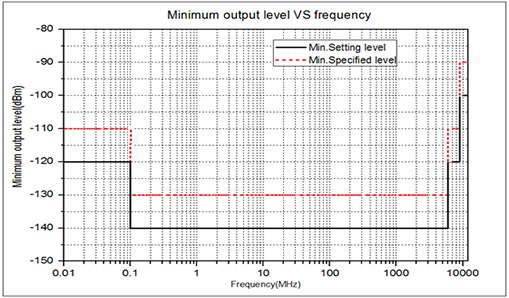

Minimum output amplitude of -130dBm (can be set to -140dBm) for demanding receiver sensitivity testing

  • MODEL
    FREQUENCY RANGE
    AMPLITUDE INDICATORS RANGE
    SSB PHASE NOISE
    MODULATION FUNCTION
    PRICE
  • DSG3060
    9kHz~6GHz
    -130dBm~+13dBm
    <-105dBc/Hz@1GHz,20kHz offset
    AM/FM/ØM/Pulse
  • DSG3030
    9kHz~3GHz
    -130dBm~+13dBm
    <-105dBc/Hz@1GHz,20kHz offset
    AM/FM/ØM/Pulse
  • DSG3120
    9kHz~12GHz
    -130dBm~+13dBm
    <-110dBc/Hz@1GHz,20kHz offset
    AM/FM/ØM/Pulse
  • DSG3060-IQ
    9kHz~6GHz
    -130dBm~+13dBm
    <-110dBc/Hz@1GHz,20kHz offset
    AM/FM/ØM/Pulse/IQ
  • DSG3030-IQ
    9kHz~3GHz
    -130dBm~+13dBm
    <-110dBc/Hz@1GHz,20kHz offset
    AM/FM/ØM/Pulse/IQ
SOFTWARE DOWNLOAD
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
FUNCTIONAL OPTIONS
MODEL
DESCRIPTION
PRICE
DSG3000B-PUG
DSG3000B多脉冲调制及脉冲发生器选件
$ 599
PMC-DSG3000
Power meter control software package
Get a Guote
ACCESSORIES
MODEL
DESCRIPTION
PRICE
RM-DSG3000
Rack mount kit
$ 99
OCXO-A08
Highly stable clock reference
Get a Guote
CB-USBA-USBB-FF-150
USB Data line，150cm
$ 17
CB-BNC-BNC-MM-100
BNC Coaxial line，100cm
$ 19
USB-GPIB
USB-GPIB adapter
$ 329
ATT03301H
30dB High Power Attenuator，Maximum power is 100W
$ 230
RF Attenuator Kit
Include：6dBAttenuator（1pcs），10dBAttenuator（2pcs）
$ 524
RF Adaptor Kit
"Include： N Female-N Femaleadapter（1pcs），N Male -N Male adapter（1pcs），N Male -SMAFemaleadapter（2pcs），N Male -BNCFemaleadapter（2pcs），SMAFemale-SMAFemaleadapter（1pcs），SMA Male -SMA Male adapter（1pcs），BNC T型adapter（1pcs），50Ω SMA负载（1pcs），50Ω BNC阻抗adapter（1pcs）"
$ 314
CB-NM-SMAM-75-L-12G
N(M)-SMA(M) RF Cable
$ 198
CB-NM-NM-75-L-12G
N(M)-N(M) RF Cable
$ 198
USER GUIDE
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
DATASHEETS
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
PROGRAMMING MANUAL
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
QuickGuide
  • NAME
  • VERSION
  • RELEASE DATE
  • DOWNLOAD
